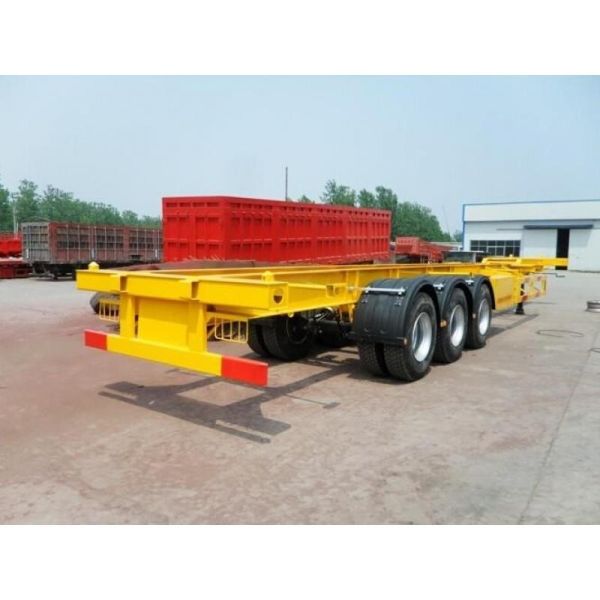

    Skeletal 60 Tons 12m Lowboy Semi Trailer With Container Locks Three Axles

    Ask Lasest Price
    Brand Name : HAIZHOU
    Model Number : HZ4257N3247
    Certification : ISO/CCC/SGS
    Price : $9000-16000
    Payment Terms : T/T or western Union
    Supply Ability : 3,000pcs per month
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

    Skeletal 60 Tons 12m Lowboy Semi Trailer With Container Locks Three Axles

    three axles 60 tons 12m skeletal flatbed container trailer with container locks with warranty

    Specification:


    Type3 Axle Skeleton Container Semi-trailer
    Function2x 20ft ; 1×40ft container or other stuff
    Weight
    Loading capacity70000 kg
    Tare weight7400 kg
    Specification
    Dimensions(L*W*H) mm12500×2500×1650mm
    Main BeamHeavy duty and extra durability designed I beam;
    opting for high tensile steel Q345,
    welded by automatic submerged-Aac processes.
    Top flange 14mm,width140mm;Middle
    Flange 8mm;bottom flange16mm,width 140mm
    Axle number3
    Axle weight load13 ton
    Axle brandFUWA
    Tire type12R22.5
    Container twist locker12 no.of ISO twist locks or according your needs
    King pin3.5"(90#) removable
    Support legs28Ton standard
    Leaf springLeaf spring 6 sets
    SuspensionMechanical suspension
    Braking systemT30/30 spring brake chamber;40L air tanks
    Tools box2
    Electrical
    Voltage24V
    Receptacle7 ways (7 wire harness)
    Light
    Side marker lampLED type
    Shipping termsNaked
    Delivery time30 workdays after confirming order and receiving your deposit
    Miscellaneous
    markingAccording to the requirements from customers
    paintingYellow red optional

    Description:

    HAIZHOU manufactures high quality Flatbed Semi Trailer. With the technical expertise of our professionals, we are capable to provide Flatbed Semi Trailer which has various applications and multiple functions, SINOMTP Flatbed Semi Trailer can be usage for 40 ft containers. For the complete satisfaction of the clients, we manufacture is as per their requirements and demands. The long lasting life and low maintenance of Flatbed Semi Trailer is appreciated among the clients.

    Applications:

    Flatbed semi trailers are another commonly used type of equipment in the transportation industry.
    Flatbed trailers are used to deliver products like pipe, steel, lumber, heavy equipment, and any other Itemthat would be difficult to load into the back of a trailer. Flatbeds are more versatile than dry vans,because they can be loaded from anywhere on the trailer.

    Competitive Advantage
    1, Flatbed Semi Trailer can use it to carry one 40 ft cargo container, two 20 ft containers , or one 20 ft container at one time.
    2, Flatbed Semi Trailer includes a 3 mm thickness flat platform that is made of checkered plates. Ridges flatbed create more friction, thus making it slip-resistant.
    3, All the parts of Flatbed Semi Trailer are purchased from our qualified suppliers, That made Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use


    Warranty


    ITEM NAMEWARRANTYITEM NAMEWARRANTY
    MAIN FRAMEFRAME1 YEARRUNNING GEARAXLE6 MONTHS
    SUSPENSION6 MONTHSAXLE BEARING3 MONTHS
    KING PIN1 YEARWHEEL HUB3 MONTHS
    BALANCE ARM3 MONTHSTIRE6 MONTHS
    ITEM NAMEWARRANTYITEM NAMEWARRANTY
    BRAKING DEVICEBRAKE DRUM3 MONTHSSUPPORT DEVICELANDING GEAR6 MONTHS
    BRKE CHAMBER3 MONTHSSPARE WHEEL CARRIER6 MONTHS
    AIR RESERVOIR6 MONTHS
    ITEM NAMEWARRANTY
    OTHERSLEAF SPRING3 MONTHS
    BRAKE CHAMBER DIAPHRAGM3 MONTHS
    EMERGENCY RELAY VALVE3 MONTHS
    BRAKE SHOE3 MONTHS
    RELAY VALVE3 MONTHS
